Future Proof LED Displays

Full Color LED Displays

We believe in manufacturing and providing high-quality LED displays that allow your customers to take advantage of the LED revolution of the sign industry. Since 2007, American LED Technology has become an alternative to overpriced LED solutions due to our small-scale and efficient approach to growth. This gives us the flexibility to work with you when faced with those difficult-to-quote custom projects. Our displays are constructed of all aluminum cabinets, coated in Duramax™ exterior liner, quick-release corrosion-resistant modules, and conformal coated power supplies. All our products are MET lab certified to UL-48, UL-8750, and CSA 22.2 standards with nothing but premium components inside. We build them with pride!

Specifications

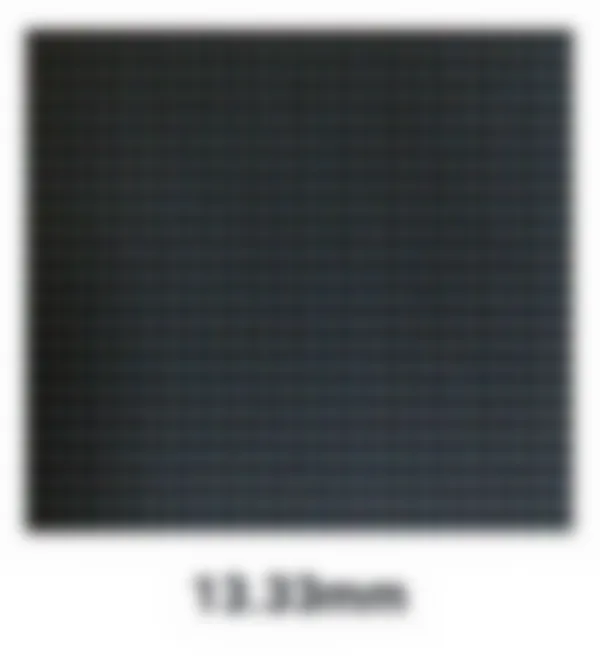

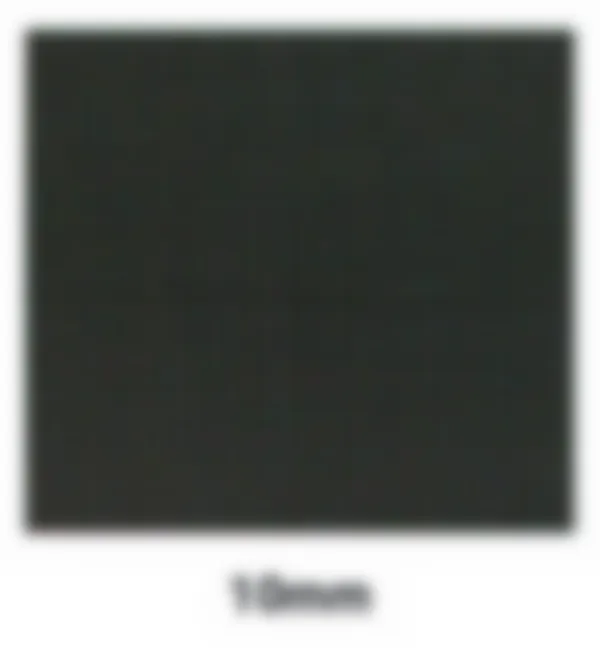

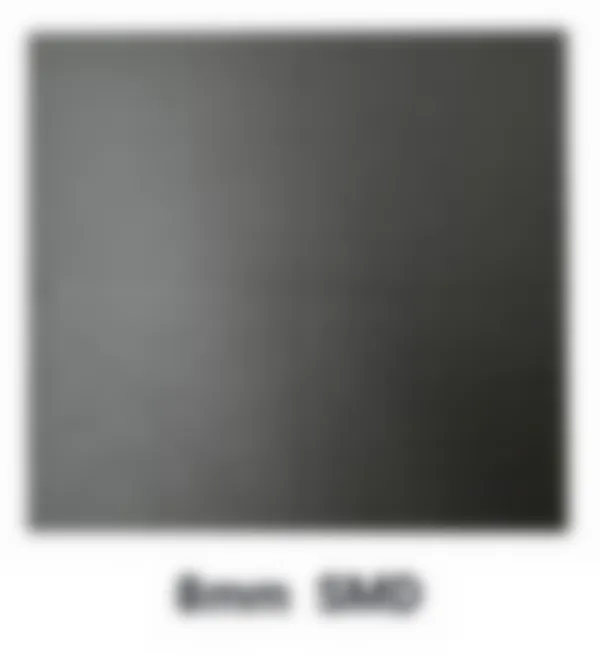

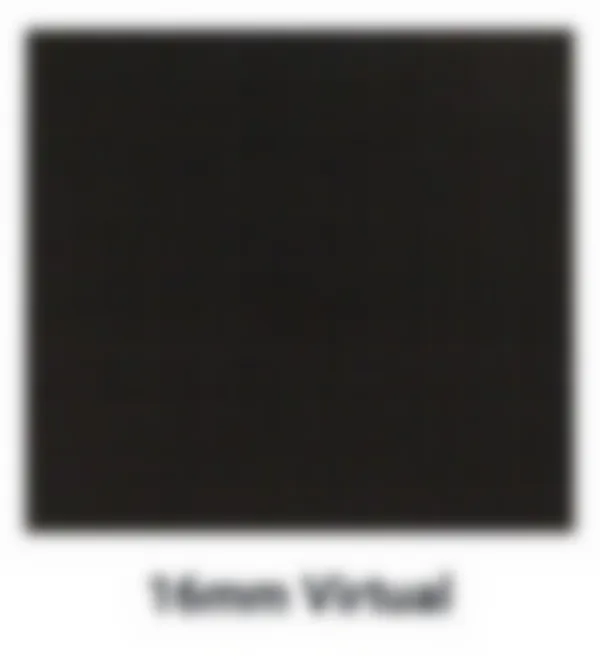

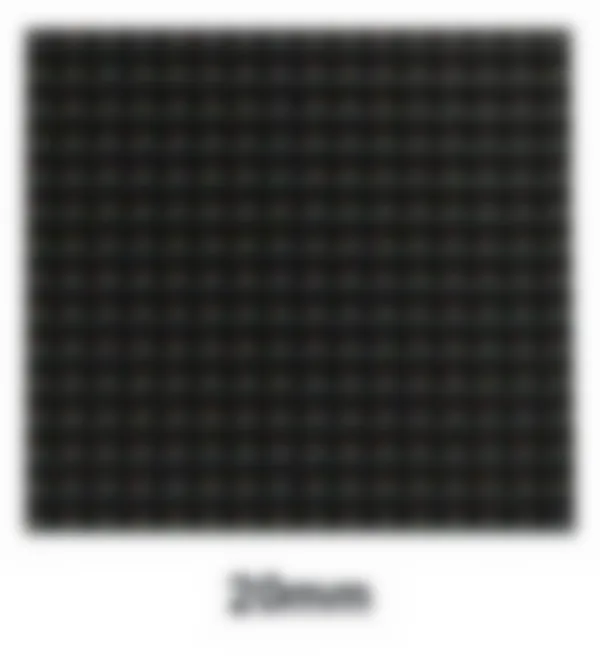

Pixel Resolutions 8mm, 10mm, 13.33mm , 16mm, 20mm, 16mm Virtual, 20mm Virtual
Pixel Configuration 1R, 1G, 1B (for Virtual 2R, 1G, 1B)
Brightness Up to 12,000 nits
Viewing Angle 140 ° / 60 °
Colors 4.4 Trillion
Color Temperature 65000k - 8000k
Internal Working Voltage 5V DC
Protection Grade IP 65/67 front, 55 back
Lifespan 100,000 Hours
Module Size 1.05ft x 1.05ft (approximately 32 x 32 centimeters)
Operation Temperature -20° to 149° F
Input Voltage 110 - 240 VAC
Cabinet All-Aluminum, Duramax® Coated (resistant to rust, corrosion, fire & weather)
Modules Quick-release, Silicone Gel Coated
Power Supply Conformal Coated
Surge Protection Built-In to Every Display
Warranty 5 Year Warranty & Free Lifetime US-Based Technical Support
Spare Parts Kit included with Every Order

Our LED Displays

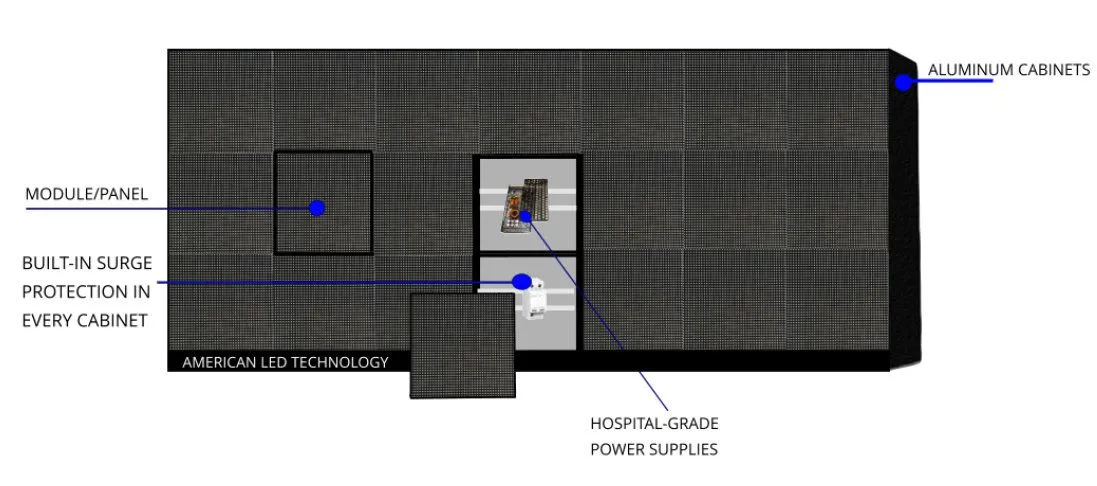

LED Display

Our LED Modules

American LED Technology modules are manufactured using premium components. All modules have an average LED life of 100,000 hours or greater. Module brightness levels can reach up to 12,000 nits. All LED modules conform to NRTL standards. Modules are 1.05' H x 1.05' W making display sizes available in multiples of 1.05' in height and width with no costly dead space. All LED modules have a front release mechanism for quick and easy servicing with a common 3mm hex head tool. American LED Technology uses LED modules coated with a thick layer of silicone gel which protects components and circuit board connections from corrosion and mold caused by moisture thus improving reliability and extending the life.

LED Display

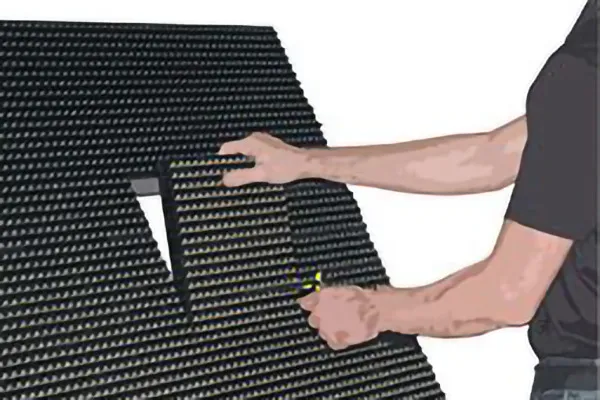

Front Release

Gel Coated LED Modules

Resolution Options

Aenean in rhoncus lacus, eu feugiat urna. Duis risus tellus, faucibus imperdiet tincidunt a, maximus at purus.
Pellentesque Resolutionsus eros et pretium suscipit.











Creative Services

Customers can get the most out of your LED display with eye catching content! The most important part of your new LED display is what you show on it! Great content design not only shows the displays full capabilities, but also gets the best results. It also gets more attention and successfully delivers your message to potential customers. Take advantage of our creative services for your business or browse our online content store.



Custom Content

Let us create custom artwork for your business or organization! Have a specific message in mind? We can create graphics or animations using your specific message, company logo, and even images.



View Our Content Library

View our library of ready made graphics and animations available for purchase and download online 24/7. Check back with us often, we're constantly adding to our library!
